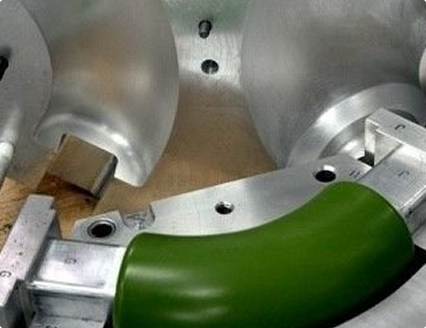

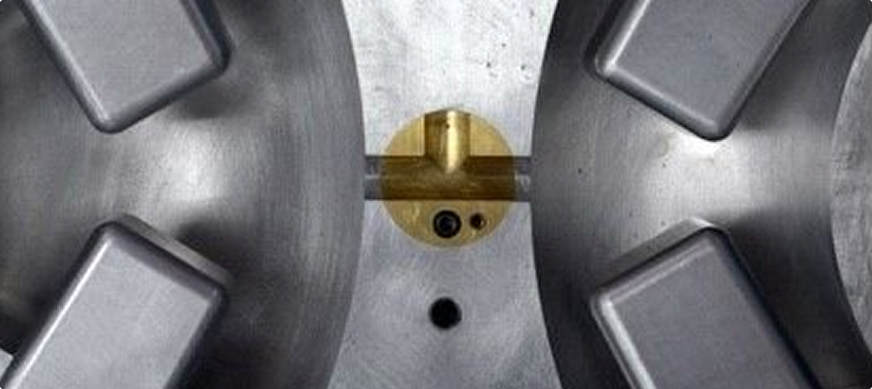

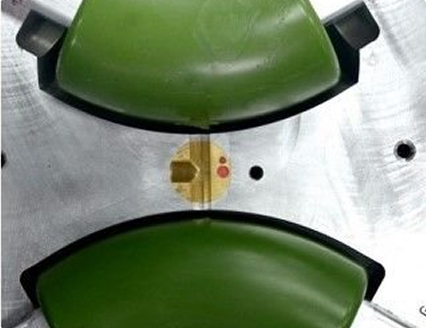

Investment tooling / fixtures

Tooling & fixtures frequently asked questions

Why are tooling and fixtures used?

Tooling and fixtures support consistent, repeatable production during investment casting. They help maintain alignment, accuracy and process control, improving quality and reducing variation between parts. Our team designs and manufactures tooling to suit the component and production requirements.

Do you design tooling in-house?

Backed by decades of combined experience, our Engineering and senior Production teams possess extensive expertise in the design and development of investment casting tooling and runner systems. Complementing these in-house capabilities is a carefully selected network of approved tooling partners, providing specialist support for the design and manufacture of investment casting tooling where needed.

Can tooling support complex parts?

Yes, Investment casting tooling is one of the most specialised and critical elements of the manufacturing process. The quality of the tooling has a direct impact on the accuracy, consistency, and overall quality of the finished casting. The design and manufacture of tooling can take many weeks, involving advanced engineering techniques such as 3D modelling and solidification software to achieve complex geometries, tight tolerances, thin-wall sections, and exceptional surface finish requirements.

Can you update existing tooling?

Yes. At Maycast, our Engineering team is supported by an in-house Machine Shop Toolroom, enabling us to undertake the modification and manufacture of tooling equipment. Using CAD models and 2D engineering drawings, our Toolroom Engineers design and produce the machining fixtures, drill jigs, and bespoke tooling required to support production, as well as modifications to existing equipment. Maintaining these capabilities in-house provides greater control over the process, reduces lead times, and ensures the highest levels of accuracy, quality, and operational efficiency.
